在本文中，我们将介绍如何构建带有VGA输出的低分辨率热成像。该解决方案基于 MLX90640阵列、FPGA S7 50开发板(-Xilinx Spartan-7 FPGA，带VGA输出)。
Sparkfun Melexis MLX90640 红外阵列
MLX90640 SparkFun IR Array Breakout 配备 32x24 热电堆阵列，本质上形成低分辨率热成像相机。
MLX90640 包含 768 个 FIR 像素。集成了一个环境传感器，用于测量芯片的环境温度，以及一个传感器，用于测量 VDD。所有传感器（IR、Ta 和 VDD）的输出均存储在内部 中，可通过 I²C 访问。
该模块具有 110°x75° 视场角，温度测量范围为 -40°C-300°C。
MLX90640 SparkFun 模块已将上拉连接到 总线，因此我们不推荐在开发板上使用 I2C 上拉电阻。
开发板原理图：A rty_s7_sch-rev_b.pdf
https://digilent.com/reference/_media/reference/programmable-/arty-s7/arty_s7_sch-rev_b.pdf
MLX90640 需要主机平台进行复杂的计算。我们的系统需要 20,000 字节或更多的 RAM。
MLX90640 的 I2C 地址为 0x33，由硬件定义。我们将使用专用的 I2C 通道来驱动 MLX90640。
MLX90640-数据表-Melexis.pdf
https://www.melexis.com/en/product/MLX90640/Far-Infrared-Thermal-Sensor-Array
VGA热成像摄像机系统设计
该系统非常简单。只需拨动开关即可开启或关闭摄像头。Microblaze 软通过 I2C 协议连接到热阵列，计算温度数据，将其转换为颜色并将其存储在 3 RAM 内存中的非活动缓冲区中。数据存储完成后，它会将缓冲区切换至 VGA 显示。摄像头开启时，所有操作均按此进行。
FPGA硬件设计
该系统将显示来自 DDR 中的帧缓冲区的图像，使用 FPGA 逻辑中的多个组件来生成 VGA 颜色和同步。

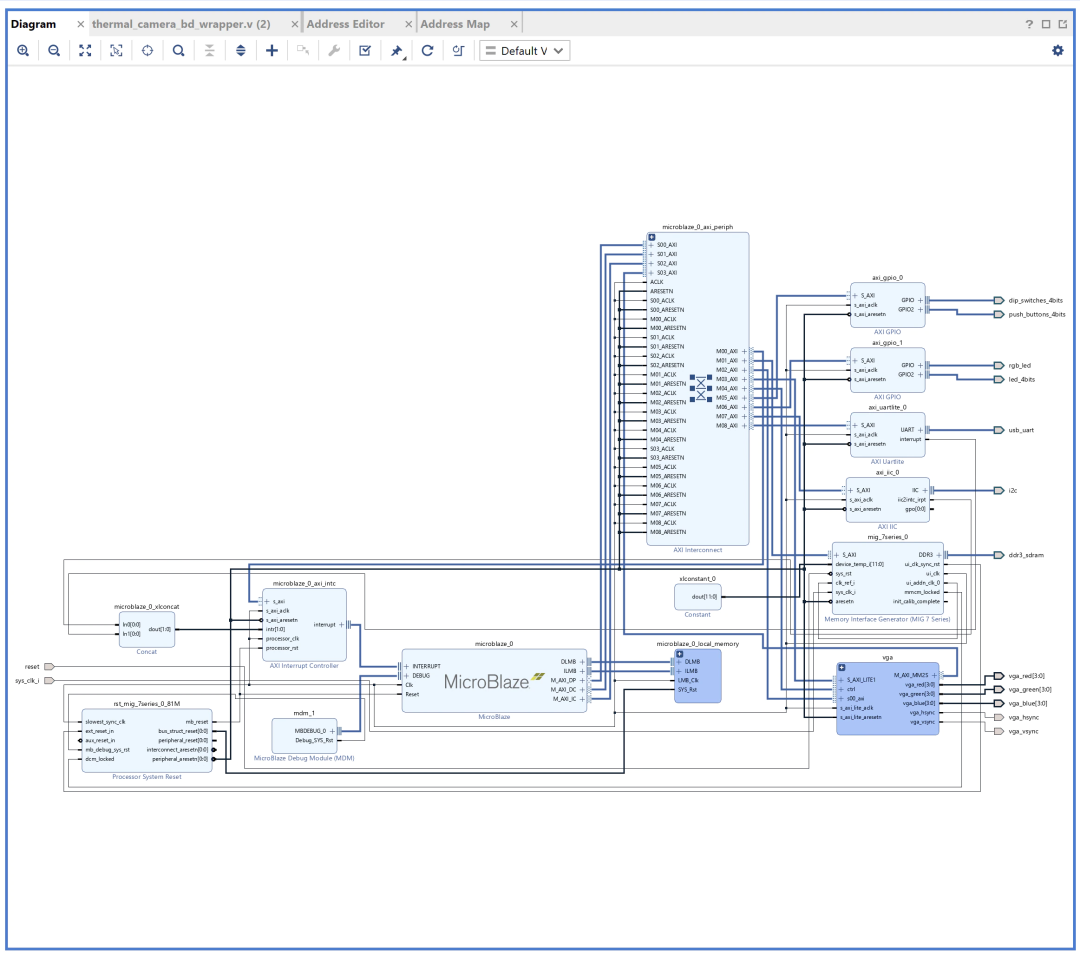

BD设计

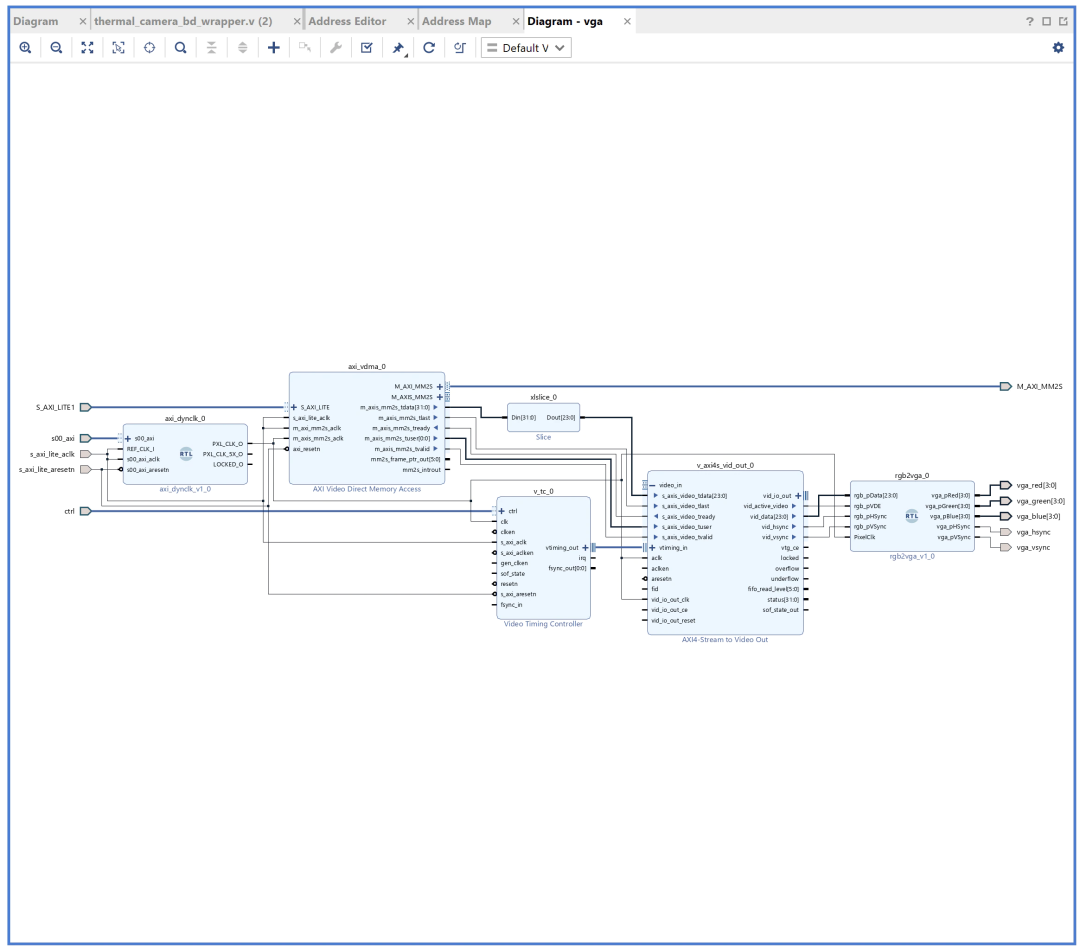

VGA层次结构块设计
VGA 层次结构基于Zybo VGA 输出 - 实时系统 - York Wiki 服务， 适用于 Microblaze
https://wiki.york..uk/display/RTS/Zybo+VGA+Output
MLX90640 红外阵列
与传感器的是通过 I2C 协议完成的。
该设备使用 I2C 协议，支持 FM+ 模式（高达 1MHz 频率），并且在总线上只能作为一个从机。

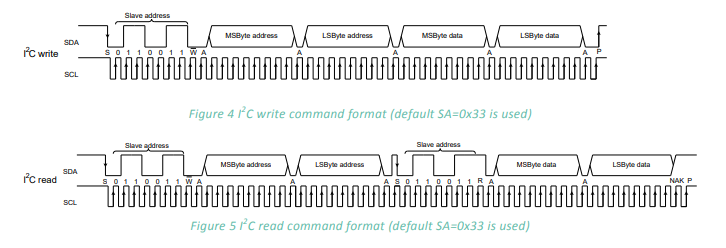

开始/停止条件
每个通信会话都由一个 START 条件启动，以一个 STOP 条件结束。START 条件由 SDA 信号由高电平跳变至低电平触发，而 STOP 条件由低电平跳变至高电平触发。两种跳变都必须在 SCL 信号为高电平时进行。
测试源代码：
/**
* Example of reeding mp data from mlx90640 with the Digilent Arty S7, with animaon
*/
#include "platform.h"
#include "xil_printf.h"
#include "mlx90640_a.h"
#include "xiic.h"
#include "xintc.h"
#include "xil_exception.h"
#include "sleep.h"
/*
* The following constants map to the XPAR paramete createdinthe
* xparameters.h file. They are defined here such that a user easily
* change all the needed parametersinone place.
*/
#define IIC_DEVICE_ID XPAR_IIC_0_DEVICE_ID
#define INTC_DEVICE_ID XPAR_INTC_0_DEVICE_ID
#define IIC_INTR_ID XPAR_INTC_0_IIC_0_VEC_ID
XIic IicInstance; /* The instance of the IIC device */
XIntc Interruontroller; /* The instance of the Interrupt controller */
#define IIC_SLAVE_DR 0x33
#define IIC_SCLK_RATE 100000
volatile u8 TransmitComplete;
volatile u8 ReceiveComplete;
/*
* The following structure contns fields that are used with the callbacks
* (handlers) of the IIC driver. The driver asynchronously calls handlers
* when abnormal events occur or when data has been sent or received. This
* structure must be volatile to work when the code is optimized.
*/
volatile struct {
int EventStatus;
int RemainingRecvBytes;
int EventStatusUpdated;
int RecvBytesUpdated;
} HandlerInfo;
#define BL 55
#define 54
#define WIDTH 32
#define HEIGHT 24
#define TEST_BUFFER_SIZE 512
#define TA_SHIFT 8
/************************** Function Prototypes ******************************/
int IicRepeatedStartExample();
static int SetupInterruptSystem(XIic *IicInstPtr);
static void ReceiveHandler(XIic *InstancePtr);
static void SendHandler(XIic *InstancePtr);
static void StatusHandler(XIic *InstancePtr, int Event);
void VGA_Fill_Color(uint16_t color);
int MLX90640_I2CRead(uint8_t slaveAddr, uint16_t startAddress,
uint16_t nMemAddressRead, uint16_t *data);
int MLX90640_I2CWrite(uint8_t slaveAddr, uint16_t writeAddress, uint16_t data);
void VGA_Fill_Display(float*mlx90640Frame);
void VGA_DrawPixel(uint16_t x, uint16_t y, uint16_t color);
long map(long x, long in_min, long in_max, long out_min, long out_max);
u8 SendBuffer[TEST_BUFFER_SIZE]; //I2C TX
u8 RecvBuffer[TEST_BUFFER_SIZE]; //I2C RX
u16 frame[WIDTH][HEIGHT];
const uint16_t camColors[] = { 0x480F, 0x400F, 0x400F, 0x400F, 0x4010, 0x3810,
0x3810, 0x3810, 0x3810, 0x3010, 0x3010, 0x3010, 0x2810, 0x2810, 0x2810,
0x2810, 0x2010, 0x2010, 0x2010, 0x1810, 0x1810, 0x1811, 0x1811, 0x1011,
0x1011, 0x1011, 0x0811, 0x0811, 0x0811, 0x0011, 0x0011, 0x0011, 0x0011,
0x0011, 0x0031, 0x0031, 0x0051, 0x0072, 0x0072, 0x0092, 0x00B2, 0x00B2,
0x00D2, 0x00F2, 0x00F2, 0x0112, 0x0132, 0x0152, 0x0152, 0x0172, 0x0192,
0x0192, 0x01B2, 0x01D2, 0x01F3, 0x01F3, 0x0213, 0x0233, 0x0253, 0x0253,
0x0273, 0x0293, 0x02B3, 0x02D3, 0x02D3, 0x02F3, 0x0313, 0x0333, 0x0333,
0x0353, 0x0373, 0x0394, 0x03B4, 0x03D4, 0x03D4, 0x03F4, 0x0414, 0x0434,
0x0454, 0x0474, 0x0474, 0x0494, 0x04B4, 0x04D4, 0x04F4, 0x0514, 0x0534,
0x0534, 0x0554, 0x0554, 0x0574, 0x0574, 0x0573, 0x0573, 0x0573, 0x0572,
0x0572, 0x0572, 0x0571, 0x0591, 0x0591, 0x0590, 0x0590, 0x058F, 0x058F,
0x058F, 0x058E, 0x05AE, 0x05AE, 0x05AD, 0x05AD, 0x05AD, 0x05AC, 0x05AC,
0x05AB, 0x05CB, 0x05CB, 0x05CA, 0x05CA, 0x05CA, 0x05C9, 0x05C9, 0x05C8,
0x05E8, 0x05E8, 0x05E7, 0x05E7, 0x05E6, 0x05E6, 0x05E6, 0x05E5, 0x05E5,
0x0604, 0x0604, 0x0604, 0x0603, 0x0603, 0x0602, 0x0602, 0x0601, 0x0621,
0x0621, 0x0620, 0x0620, 0x0620, 0x0620, 0x0E20, 0x0E20, 0x0E40, 0x1640,
0x1640, 0x1E40, 0x1E40, 0x2640, 0x2640, 0x2E40, 0x2E60, 0x3660, 0x3660,
0x3E60, 0x3E60, 0x3E60, 0x4660, 0x4660, 0x4E60, 0x4E80, 0x5680, 0x5680,
0x5E80, 0x5E80, 0x6680, 0x6680, 0x6E80, 0x6EA0, 0x76A0, 0x76A0, 0x7EA0,
0x7EA0, 0x86A0, 0x86A0, 0x8EA0, 0x8EC0, 0x96C0, 0x96C0, 0x9EC0, 0x9EC0,
0xA6C0, 0xAEC0, 0xAEC0, 0xB6E0, 0xB6E0, 0xBEE0, 0xBEE0, 0xC6E0, 0xC6E0,
0xCEE0, 0xCEE0, 0xD6E0, 0xD700, 0xDF00, 0xDEE0, 0xDEC0, 0xDEA0, 0xDE80,
0xDE80, 0xE660, 0xE640, 0xE620, 0xE600, 0xE5E0, 0xE5C0, 0xE5A0, 0xE580,
0xE560, 0xE540, 0xE520, 0xE500, 0xE4E0, 0xE4C0, 0xE4A0, 0xE480, 0xE460,
0xEC40, 0xEC20, 0xEC00, 0xEBE0, 0xEBC0, 0xEBA0, 0xEB80, 0xEB60, 0xEB40,
0xEB20, 0xEB00, 0xEAE0, 0xEAC0, 0xEAA0, 0xEA80, 0xEA60, 0xEA40, 0xF220,
0xF200, 0xF1E0, 0xF1C0, 0xF1A0, 0xF180, 0xF160, 0xF140, 0xF100, 0xF0E0,
0xF0C0, 0xF0A0, 0xF080, 0xF060, 0xF040, 0xF020, 0xF800, };
intmain() {
init_platform();
int Status;
XIic_Config *ConfigPtr; /* Pointer to configuration data */
init_platform();
ConfigPtr = XIic_LookupConfig(XPAR_IIC_0_DEVICE_ID);
if(ConfigPtr == NULL) {
returnXST_FAILURE;
}
//print("XIic_LookupConfig
");
Status = XIic_CfgInitialize(&IicInstance, ConfigPtr,
ConfigPtr->BaseAddress);
if(Status != XST_SUCCESS) {
returnXST_FAILURE;
}
//print("XIic_CfgInitialize
");
/*
* Setup the Interrupt System.
*/
Status = SetupInterruptSystem(&IicInstance);
if(Status != XST_SUCCESS) {
returnXST_FAILURE;
}
//print("SetupInterruptSystem
");
/*
* Set the Transmit, Receive and Status handlers.
*/
XIic_SetSendHandler(&IicInstance, &IicInstance, (XIic_Handler) SendHandler);
//print("XIic_SetSendHandler
");
XIic_SetStatusHandler(&IicInstance, &IicInstance,
(XIic_StatusHandler) StatusHandler);
//print("XIic_SetStatusHandler
");
XIic_SetRecvHandler(&IicInstance, &IicInstance,
(XIic_Handler) ReceiveHandler);
//print("XIic_SetRecvHandler
");
/*
* Set the Address of the Slave.
*/
Status = XIic_SetAddress(&IicInstance, XII_ADDR_TO_SEND_TYPE,
IIC_SLAVE_ADDR);
if(Status != XST_SUCCESS) {
returnXST_FAILURE;
}
//print("XIic_SetAddress
");
/*
* Start the IIC device.
*/
Status = XIic_Start(&IicInstance);
if(Status != XST_SUCCESS) {
returnXST_FAILURE;
}
//print("XIic_Start
");
static u16 mlx90640Frame[834];
static uint16_t eeMLX90640[832];
paramsMLX90640 mlx90640;
floatTa;
floatemissivity = 0.95;
staticfloatmlx90640To[768];
MLX90640_DumpEE(0x33, eeMLX90640);
//print("MLX90640_DumpEE
");
MLX90640_ExtractParameters(eeMLX90640, &mlx90640);
//print("MLX90640_ExtractParameters
");
while(1) {
MLX90640_GetFramta(0x33, mlx90640Frame);
//print("MLX90640_GetFrameData
");
Ta = MLX90640_GetTa(mlx90640Frame, &mlx90640) - TA_SHIFT;
//print("MLX90640_GetTa
");
MLX90640_CalculateTo(mlx90640Frame, &mlx90640, emissivity, Ta,
mlx90640To);
//print("MLX90640_CalculateTo
");
for(int i = 0; i < 24; i++) {
for (int y = 0; y < 32; y++) {
xil_printf(" %d ", (int) (mlx90640To[y + (i * 32)]));
}
xil_printf("
");
}
//VGA_Fill_Display(&mlx90640To);
}
/*
* Stop the IIC device.
*/
Status = XIic_Stop(&IicInstance);
if (Status != XST_SUCCESS) {
return XST_FAILURE;
}
cleanup_platform();
return 0;
}
long map(long x, long in_min, long in_max, long out_min, long out_max) {
return (x - in_min) * (out_max - out_min) / (in_max - in_min) + out_min;
}
void VGA_Fill_Display(float *mlx90640Frame) {
// //834
// uint16_t i, j;
//// uint8_t data[2];
// float temp;
// u8 mapped;
// u16 colour;
//
// for (i = 0; i < 240; i++)
// for (j = 0; j < 320; j++) {
//
// temp = (mlx90640Frame[((i/10)*32)+(j/10)]);
// mapped = map((u16) temp, 0, 100, 0, 255);
// colour = camColors[mapped];
// VGA_DrawPixel(0+i, 0+j, colour);
//
// }
// //ST7789_UnSelect();
}
void VGA_DrawPixel(uint16_t x, uint16_t y, uint16_t color) {
// if ((x < 0) || (x >= ST7789_WIDTH) ||
// (y < 0) || (y >= ST7789_HEIGHT))return;
//
// ST7789_SetAddressWindow(x, y, x, y);
// uint8_t data[] = {color >> 8, color & 0xFF};
// //ST7789_Select();
// ST7789_WriteData(data, sizeof(data));
// //ST7789_UnSelect();
}
void VGA_Fill_Color(uint16_t color) {
// uint16_t i, j;
// ST7789_SetAddressWindow(0, 0, ST7789_WIDTH - 1, ST7789_HEIGHT - 1);
// //ST7789_Select();
// //XSpiPs_SetSlaveSelect(&SpiInstance_EMIO, 0x00);
//
//for(i = 0; i < ST7789_WIDTH; i++)
// for (j = 0; j < ST7789_HEIGHT; j++) {
// uint8_t data[] = {color >> 8, color & 0xFF};
// ST7789_WriteData(data, sizeof(data));
// }
// //ST7789_UnSelect();
}
int MLX90640_I2CRead(uint8_t slaveAddr, uint16_t startAddress,
uint16_t nMemAddressRead, uint16_t *data) {
//print("MLX90640_I2CRead
");
int Status;
int Busy;
/*
* Set the defaults.
*/
ReceiveComplete = 1;
/*
* Set the Repeated Start option.
*/
IicInstance.Options = XII_REPEATED_START_OPTION;
int cnt = 0;
int i = 0;
u8 cmd[2] = { 0, 0 };
u8 i2cData[1664] = { 0 };
uint16_t *p;
p = data;
cmd[0] = startAddress >> 8;
cmd[1] = startAddress & 0x00FF;
Status = XIic_MasterSend(&IicInstance, cmd, 2);
if(Status != XST_SUCCESS) {
returnXST_FAILURE;
}
//print("XIic_MasterSend
");
usleep(1000);
/*
* This isforverification that Bus is not released and still Busy.
*/
BusBusy = XIic_IsIicBusy(&IicInstance);
ReceiveComplete = 1;
IicInstance.Options = 0x0;
/*
* Receive the Data.
*/
Status = XIic_MasterRecv(&IicInstance, i2cData, 2 * nMemAddressRead);
if(Status != XST_SUCCESS) {
returnXST_FAILURE;
}
usleep(1000);
//print("XIic_MasterRecv
");
while(XIic_IsIicBusy(&IicInstance) == TRUE) {
}
for(cnt = 0; cnt < nMemAddressRead; cnt++) {
i = cnt << 1;
*p++ = (uint16_t) i2cData[i] * 256 + (uint16_t) i2cData[i + 1];
}
return 0;
}
int MLX90640_I2CWrite(uint8_t slaveAddr, uint16_t writeAddress, uint16_t data) {
int Status;
int BusBusy;
/*
* Set the defaults.
*/
TransmitComplete = 1;
/*
* Set the Repeated Start option.
*/
IicInstance.Options = XII_REPEATED_START_OPTION;
u8 cmd[4] = { 0, 0, 0, 0 };
static uint16_t dataCheck;
cmd[0] = writeAddress >> 8;
cmd[1] = writeAddress & 0x00FF;
cmd[2] = data >> 8;
cmd[3] = data & 0x00FF;
/*
* Send the data.
*/
Status = XIic_MasterSend(&IicInstance, cmd, 4);
if(Status != XST_SUCCESS) {
returnXST_FAILURE;
}
print("XIic_MasterSend
");
/*
* Wait till data is transmitted.
*/
//while(TransmitComplete) {
//
// }
/*
* This isforverification that Bus is not released and still Busy.
*/
BusBusy = XIic_IsIicBusy(&IicInstance);
TransmitComplete = 1;
IicInstance.Options = 0x0;
/*
* Wait till data is transmitted.
*/
//while((TransmitComplete) || (XIic_IsIicBusy(&IicInstance) == TRUE)) {
//
// }
MLX90640_I2CRead(slaveAddr, writeAddress, 1, &dataCheck);
if(dataCheck != data) {
return-2;
}
return0;
}
/*****************************************************************************/
/**
* Thisfunctionsetups the interrupt system so interrupts can occuorthe
* IIC. Thefunctionis application-specific since the actual system may or
* may not have an interrupt controller. The IIC device could be directly
* connected to a processor without an interrupt controller. The user should
* modify thisfunctionto fit the application.
*
* @param IicInstPtr contains a pointer to the instance of the IIC which
* is going to be connected to the interrupt controller.
*
* @returnXST_SUCCESSifsuccessfulelseXST_FAILURE.
*
* @note None.
*
******************************************************************************/
static int SetupInterruptSystem(XIic *IicInstPtr) {
int Status;
if(InterruptController.IsStarted == XIL_COMPONENT_IS_STARTED) {
returnXST_SUCCESS;
}
/*
* Initialize the interrupt controller driver so that it's ready to use.
*/
Status = XIntc_Initialize(&InterruptController, INTC_DEVICE_ID);
if (Status != XST_SUCCESS) {
return XST_FAILURE;
}
/*
* Connect the device driver handler that will be cal when an
* interrupt for the device occurs, the handler defined above performs
* the specific interrupt processing for the device.
*/
Status = XIntc_Connect(&InterruptController, IIC_INTR_ID,
(XInterruptHandler) XIic_InterruptHandler, IicInstPtr);
if (Status != XST_SUCCESS) {
return XST_FAILURE;
}
/*
* Start the interrupt controller so interrupts are enabled for all
* devices that cause interrupts.
*/
Status = XIntc_Start(&InterruptController, XIN_REAL_MODE);
if (Status != XST_SUCCESS) {
return XST_FAILURE;
}
/*
* Enable the interrupts for the IIC device.
*/
XIntc_Enable(&InterruptController, IIC_INTR_ID);
/*
* Initialize the exception table.
*/
Xil_ExceptionInit();
/*
* Register the interrupt controller handler with the exception table.
*/
Xil_ExceptionRegisterHandler(XIL_EXCEPTION_ID_INT,
(Xil_ExceptionHandler) XIntc_InterruptHandler,
&InterruptController);
/*
* Enable non-critical exceptions.
*/
Xil_ExceptionEnable();
return XST_SUCCESS;
}
/*****************************************************************************/
/**
* This Send handler is called asynchronously from an interrupt context and
* indicates that data in the specified buffer has been sent.
*
* @param InstancePtr is a pointer to the IIC driver instance for which
* the handler is being called for.
*
* @return None.
*
* @note None.
*
******************************************************************************/
static void SendHandler(XIic *InstancePtr) {
TransmitComplete = 0;
}
/*****************************************************************************/
/**
* This Status handler is called asynchronously from an interrupt
* context and indicates the events that have occurred.
*
* @param InstancePtr is a pointer to the IIC driver instance for which
* the handler is being called for.
* @param Event indicates the condition that has occurred.
*
* @return None.
*
* @note None.
*
******************************************************************************/
static void StatusHandler(XIic *InstancePtr, int Event) {
}
/*****************************************************************************/
/**
* This Receive handler is called asynchronously from an interrupt context and
* indicates that data in the specified buffer has been Received.
*
* @param InstancePtr is a pointer to the IIC driver instance for which
* the handler is being called for.
*
* @return None.
*
* @note None.
*
******************************************************************************/
static void ReceiveHandler(XIic *InstancePtr) {
ReceiveComplete = 0;
}
完整代码
将传感器的驱动及VGA的驱动结合起来形成完整的代码进行测试：

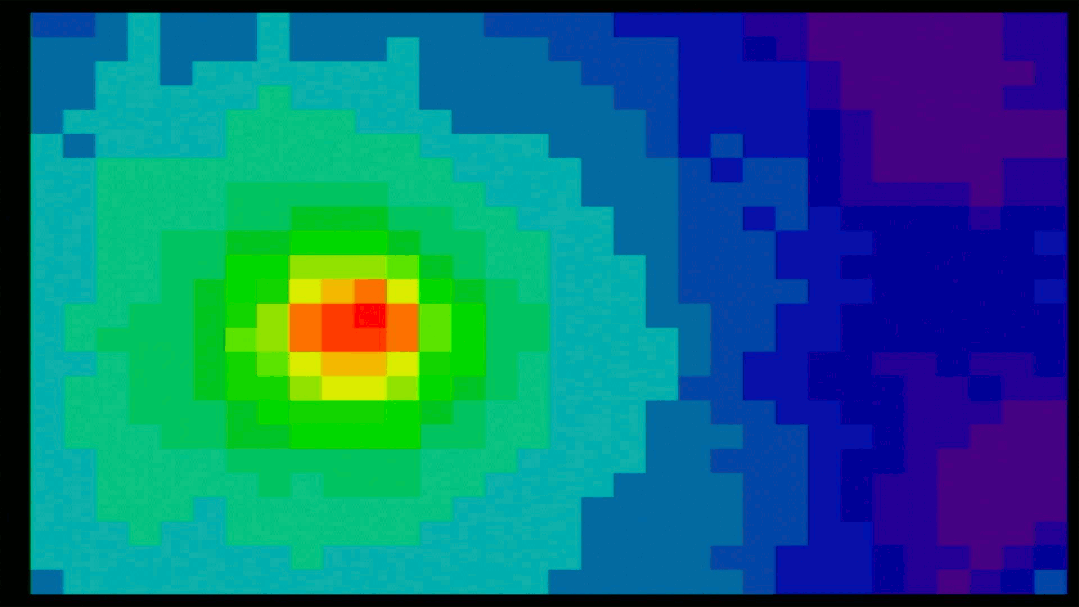

VGA 热成像演示视频：该视频展示了热像仪以 800x600 @60Hz 捕获的 VGA 输出，Microblaze 软和 MLX90640 红外热阵列传感器之间的 I2C 协议下的通信。

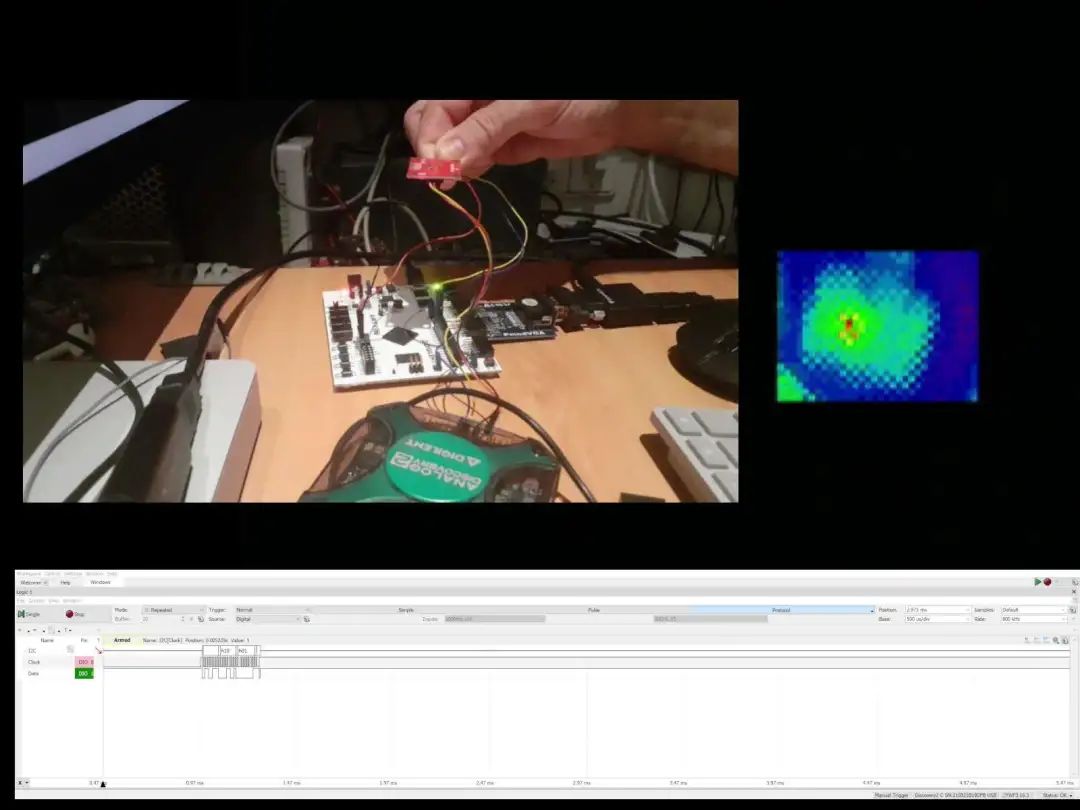

视频中，首先将一只手放在传感器前，然后将传感器指向 Arty S7 开发板，我们可以看到 Spartan-7 FPGA 上的温差。当传感器指向 Spartan-7 FPGA 时，读数为最高温度：54.7 摄氏度，最低温度：31.87 摄氏度。
代码链接
https://github.com/goza/E14SpartanMigrationProgram/tree/main
https://community.element14.com/technologies/fpga-group/b/blog/posts/arty-s7-50-vga-thermal-imaging-camera
总结
东西不复杂，主要就是一个传感器的驱动+VGA驱动（很多历程），所以该项目还有很大的改进和优化空间。需要改进的方面：
使用 HDL 执行图像缩放。将每帧占用的内存量从 800600 像素（480,000 像素）减少到 3224 像素（768 像素）。
将像素设置为无符号 16 位而不是无符号 32 位，可以将处理和所需的内存量减少一半。我们每个像素只需要 12 位。
在 HDL 中执行颜色空间转换。
每次读取时仅处理发生变化的传感器单元。每帧将单元数量减少一半。
Fidus Sidewinder-100集成PCIe NVMe 控制系统，有
关注微信
